Special Offer R32 Monoblock Special Edition Heat Pump for Heating & Cooling

Brand Name : Wotech

Model Number : HM16VM

Certification : 3C

Place of Origin : China

MOQ : 2

Price : Negotiable

Payment Terms : T/T,L/C AT SIGHT

Supply Ability : 800 Sets/Day

Delivery Time : 25 working day

Packaging Details : Polywood Pallet

After-sales Service Provided : Free spare parts

Warranty : 1 Year

Application : Hotel, Garage, Commercial, Household

Power Source : Electric

logo/pattern : Silk screen printing

Type : Air Source Heat Pump, Monoblock

Use : Home

Heating Source : Air to Water Heat Pump

Function : Heating+Cooling

Refrigerant : R32

Housing Material : Galvanized Steel with Powder coated

Power Supply : 220V-50Hz-1Phase

Contact Now

Special Offer R32 Monoblock Special Edition Heat Pump for Heating & Cooling

Ultra Low Temperature Full DC Inverter Unit

Special Offer R32 Monoblock Special Edition Heat Pump for Heating & Cooling

Excellent Performance Unleashes Power

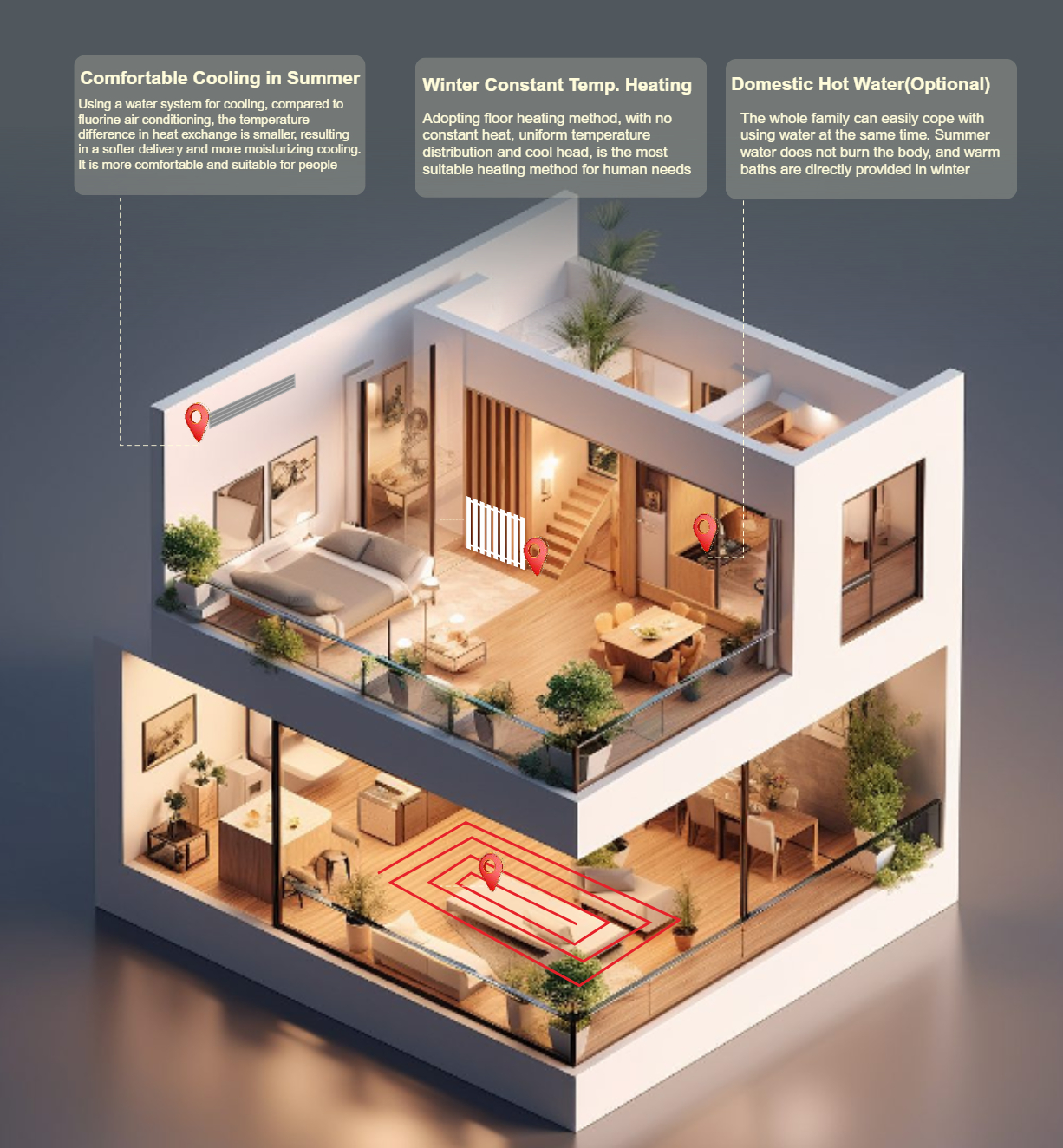

Special Offer R32 Monoblock Special Edition Heat Pump for Heating & CoolingResidential Heating & Cooling Solutions

Whole house constant temperature heating+central air conditioning+domestic hot water to create a comfortable and healthy living environment that feels like spring all year round

Special Offer R32 Monoblock Special Edition Heat Pump for Heating & Cooling

Specifications

Model HM10VM HM12VM HM16VM HM20VM HM16VT HM20VT HM26VT HM35VT
Power supply V/Ph/Hz 220-240/1/50 220-240/1/50 220-240/1/50 220-240/1/50 380-415/3/50 380-415/3/50 380-415/3/50 380-415/3/50
Performance Condition:Outdoor air 7℃/6℃,Inlet/Outlet water 30℃/35℃
Heating Capacity kW 3.8～10.5 5.0～12.2 5.6～16.8 7.2～20.2 5.6～16.8 7.2～20.2 12.8～26.6 16.5～35.3
Rated input kW 0.8～3.3 0.9～3.6 1.1～5.1 1.6～5.8 1.1～5.1 1.6～5.8 2.9～7.6 3.8～10.1
SCOP 4.31 4.33 4.28 4.23 4.27 4.23 4.22 4.25
Performance Condition:Outdoor air7℃/6℃,Inlet/Outlet water 50℃/55℃
Heating Capacity kW 3.9～10.6 5.2～12.4 5.8～16.9 7.4～20.5 5.8～16.9 7.4～20.5 13.1～26.8 16.8～35.6
Rated input kW 1.0～3.8 1.3～4.4 1.5～6.1 1.9～7.3 1.5～6.1 1.9～7.3 3.3～9.5 4.2～12.7
SCOP 3.38 3.32 3.33 3.38 3.33 3.38 3.51 3.53
Performance Condition:Outdoor air 35℃/24℃,Inlet/Outlet water 12℃/7℃
Cooling Capacity kW 3.1-7.8 4.1～10.1 5.0～12.5 6.3～15.8 5.0～12.5 6.3～15.8 7.0～17.5 9.8~24.5
Rated input kW 1.0～2.9 1.3～3.7 1.6～45 2.0～5.7 1.6～45 2.0～5.7 2.2～6.3 3.1～8.6
EER 2.72 2.73 2.75 2.78 2.75 2.78 2.81 2.86
Energy class
(SCOP)		 Outlet water temp at 35℃ A++
Outlet water temp.at 55℃ A++
Refrigerant Type R32
Noise level Heating dB(A) 52 52 54 55 57 55 56 58
Cooling dB(A) 50 50 52 53 52 53 54 56
Water flow volume m³/h 1.72 2.06 2.75 3.44 2.75 3.44 4.47 6.02
Water piping connections mm DN25 Male DN25 Male DN25 Male DN25 Male DN25 Male DN25 Male DN32 Male DN40 Male
Operating
Temperature
Range		 Cooling ℃ 15～45
Heating ℃ -30～45
DHW ℃ -30～45
Net dimensions(W*D*H) mm 960*380*690 960*380*690 1035*385*1340 1035*385*1340 1035*385*1340 1035*385*1340 1035*385*1340 1120*430*1550
Packed dimensions(W*D*H) mm 1040*450*750 1040*450*750 1055*432*1480 1055*432*1480 1055*432*1480 1055*432*1480 1055*432*1480 1160*473*1695
Net/Gross weight kg 57 60 98 110 102 110 112 145
*Please refer to the nameplate for product upgrades or changes in specifications without prior notice
